As the United States builds a more resilient solar supply chain, the industry’s attention and data collection has primarily focused on factory capacity: how many gigawatts have been announced, how quickly facilities can begin production and where new manufacturing operations are located.

There is an often overlooked aspect of this process, however: What material enters the factory before the cells are produced? The answer can reveal whether a facility is performing the core processes, specifically P/N Junction, required to manufacture a solar cell or completing a limited number of steps on a product that has already undergone its most important transformation overseas.

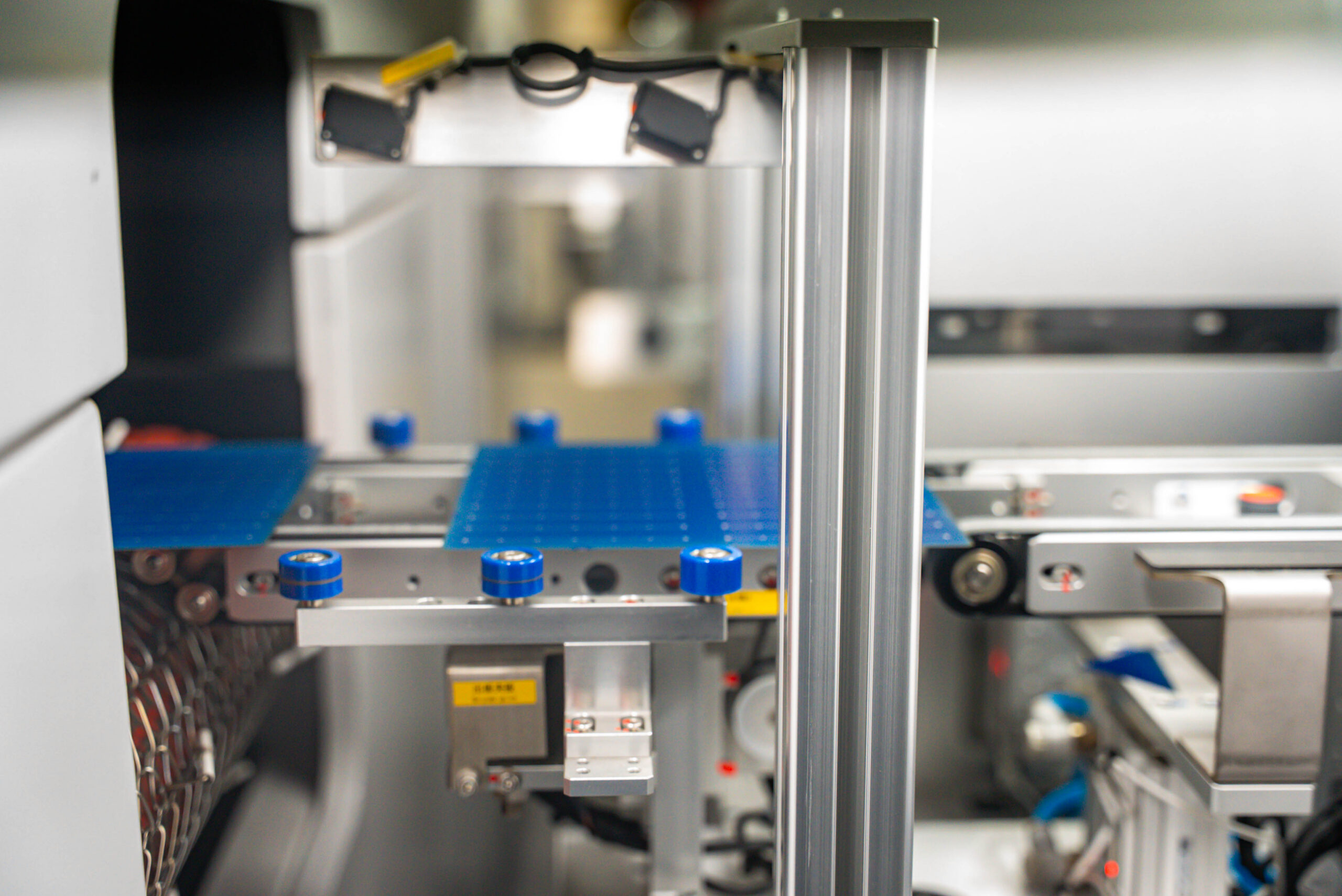

This distinction is at the center of the growing discussion surrounding “gray wafers” and “blue wafers.” While the terms may sound highly esoteric, the issue has significant implications for domestic manufacturing policy, tax-credit eligibility, trade compliance and the credibility of the U.S. solar supply chain.

A gray wafer is an unprocessed silicon wafer, meaning it cannot generate electricity on its own. Turning it into a functioning solar cell requires a series of highly controlled manufacturing processes that alter its surface, electrical properties and performance.

Although specific production sequences vary by cell architecture, these processes typically include texturing and cleaning the wafer, junction formation, edge isolation, passivation, anti-reflective coating application, metallization and testing.

Among these steps, formation of the photovoltaic junction is particularly significant. The starting crystalline-silicon wafer may be either p-type or n-type. During cell manufacturing, a layer of the opposite conductivity type is introduced to form the junction necessary for photovoltaic operation.
